What is a bulkhead fitting ?

In any piping or plumbing system, maintaining a secure and leak-free connection is essential for safety, efficiency, and reliability. One of the most important components that make this possible is the bulkhead fitting. Designed to create a watertight seal through tank walls, containers, or barriers, bulkhead fittings ensure smooth fluid flow between separate compartments or systems.

What Is a Bulkhead Fitting?

A bulkhead fitting (also called a bulkhead pipe fitting) is a specialized connector designed to provide a leak-proof passage through a wall, tank, or other barrier. It’s used wherever fluid needs to pass safely between two areas while maintaining the integrity of the structure.

Commonly made from materials such as iron , stainless steel, brass, or PVC, bulkhead fittings are widely used in:

Plumbing and piping systems

Water treatment and irrigation tanks

Chemical and fuel storage systems

Industrial fluid transfer setups

Aquariums and marine applications

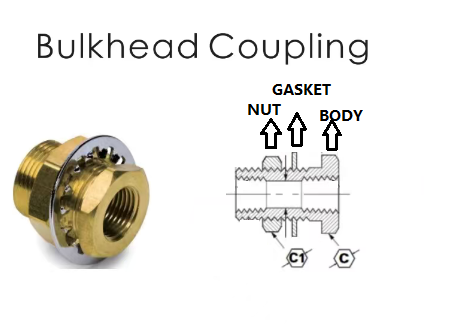

Main Components of a Bulkhead Pipe Fitting

A typical bulkhead pipe fitting consists of the following key parts:

Body – The main cylindrical section that passes through the barrier, usually threaded for connection on both ends.

Nuts – One or two nuts are tightened on each side of the wall to secure the fitting.

Gasket or O-ring – These components ensure a tight, leak-proof seal between the fitting and the barrier surface.

When properly installed, these parts work together to create a reliable watertight joint that can handle pressure and prevent leakage.

How Does a Bulkhead Fitting Work?

The working mechanism of a bulkhead fitting is simple but highly effective:

Drill a hole in the tank or wall where the fitting will pass through.

Insert the bulkhead pipe fitting body through the hole.

Place a gasket or O-ring between the fitting and the barrier.

Tighten the nuts from both sides to compress the gasket and form a watertight seal.

The result is a secure passage for fluid to move through without leaking, even under pressure or vibration.

Types of Bulkhead Fittings

There are several types of bulkhead fittings, each suited for specific uses and environments:

1. Standard Bulkhead Fittings

These are the most common type, ideal for general plumbing and low-pressure applications.

2. Tank Bulkhead Fittings

Used in tanks or reservoirs to create inlets and outlets for liquid transfer. These fittings usually have thicker walls and larger diameters.

3. Flanged Bulkhead Fittings

Feature flanged ends instead of standard nuts, offering better stability for high-pressure or industrial systems.

4. Double Bulkhead Fittings

Provide two connection points on each side of the barrier, ideal for systems that require balanced flow or dual connections.

5. Bulkhead Valve Fittings

Incorporate an integrated valve to control the flow directly at the bulkhead connection point.

Connection Types: Threaded vs Slip Bulkhead Pipe Fittings

Bulkhead fittings can be classified based on their installation style:

Threaded Bulkhead Fittings

These have threaded ends on both sides, allowing secure attachment to pipes or hoses. They are widely used in industrial, mechanical, and plumbing systems that require strong, leak-proof connections.

Slip Bulkhead Fittings

Also known as slip-style fittings, these don’t use threads. Instead, pipes are inserted into the fitting and bonded using adhesives or sealants. They are preferred for PVC or plastic piping systems.

Advantages of Using Bulkhead Pipe Fittings

Leak-proof connections through walls, tanks, and containers

Easy installation and maintenance

Durable construction for long service life

Versatility — suitable for liquids, gases, and chemicals

Material options — stainless steel, brass, PVC, or polypropylene to match application needs

Applications of Bulkhead Fittings

Bulkhead pipe fittings are used in a wide variety of industries and systems, including:

Water storage tanks and filtration systems

Chemical processing plants

Fuel and lubricant transfer systems

Hydraulic and pneumatic equipment

Aquatic and aquarium setups

Food and beverage processing

In each of these settings, a bulkhead pipe fittting (intentionally including slight keyword variation) ensures smooth and safe fluid transfer without compromising the vessel’s structural integrity.

Choosing the Right Bulkhead Fitting

When selecting a bulkhead fitting, consider the following factors:

Material compatibility with the fluid being transferred

Operating pressure and temperature

Size and thread type of your piping system

Installation environment (indoor, outdoor, corrosive, etc.)

For high-performance applications, stainless steel bulkhead pipe fittings are recommended due to their corrosion resistance, strength, and long lifespan.

Conclusion

Bulkhead fittings are small but critical components that ensure the reliability and safety of fluid systems. Whether you’re working on a storage tank, plumbing installation, or industrial process, the right bulkhead pipe fitting can make all the difference in achieving a durable, leak-free setup.

By understanding how these fittings work and choosing the right type and material, you can enhance performance, reduce maintenance, and ensure system integrity for years to come.
