Custom AISI 4140 Alloy Steel CNC Machining Parts

In the modern industrial landscape, selecting the right material Custom AISI 4140 Alloy Steel CNC Machining Parts is only the beginning. The real challenge for engineers and procurement managers is finding a manufacturing partner who understands the delicate balance between material science and mechanical precision. For critical components in hydraulic systems, oil and gas, and heavy machinery, AISI 4140 steel  is the gold standard for high-strength applications.

However, machining 4140 is far from simple. It requires a deep understanding of heat treatment, stress relief, and cutting tool dynamics. At Yuhuan Hongqian Machinery, with over a decade of experience and a fleet of 80+ high-speed CNC lathes, we specialize in transforming raw AISI 4140 stock into custom components with a consistent ±0.02mm tolerance.

1. Understanding AISI 4140 Alloy Steel : Beyond the Basics

AISI 4140 is a chromium-molybdenum (chromoly) low-alloy steel governed by the ASTM A29/A29M standard. Known for its exceptional hardenability and toughness, it is significantly more resilient than standard carbon steels like 1045 or Q235.

Global Material Equivalency Table

To ensure your technical drawings align with international procurement standards, refer to this cross-reference chart:

2. Chemical Composition: The Chemistry of Strength

The secret to AISI 4140’s performance lies in its chemistry. Our factory verifies every batch of raw material via spectral analysis to ensure strict compliance with ASTM A29.

Pro Tip: We maintain Phosphorus (P) and Sulfur (S) below 0.035% to prevent internal brittleness, which is crucial for custom CNC fittings that must endure high-pressure environments.

3. Mechanical Properties: Why It Beats Carbon Steel

Why pay more for 4140? The mechanical data tells the story. When we machine your parts, we optimize our CNC programs based on these physical limits:

• Tensile Strength (σb): ≥ 1080 MPa (148 ksi).

• Yield Strength (σs): ≥ 930 MPa (95 ksi).

• Elongation (δ5): ≥ 12%.

• Hardness (Annealed State): ≤ 217 HB.

• Impact Toughness (Akv): ≥ 63 J.

These properties ensure that a 4140 fitting won’t just “fail” under load; it will resist fatigue and deformation far longer than lower-grade alloys.

4-Our Specialized AISI 4140 Alloy Steel steel Product Portfolio

We leverage the high-strength properties of 4140 alloy steel to manufacture mission-critical components, including:

• Precision Pipe Fittings: High-pressure Pipe Unions, Threaded Joints, and CNC-machined Elbows and Tees (3-Way Fittings) designed for leak-proof performance.

• Automobile Parts: Custom drive shafts, steering knuckles, and high-tensile engine mounts where fatigue resistance is non-negotiable.

• Valve Components: Precision-turned valve bodies, stems, and seats optimized for high-pressure fluid control.

•  OEM/ODM Solutions: From simple CNC turning parts to complex machinery components, we provide bespoke manufacturing based on your CAD drawings.

5. Advanced Heat Treatment: Tailoring the Hardness (HRC/HB)

One of the greatest advantages of AISI 4140 is its response to thermal processing. We don’t just “cut metal”; we manage the internal crystalline structure to meet your specific drawing requirements.

Our Core Heat Treatment Processes:

• Annealing (815°C / 1500°F): Slow furnace cooling. We use this to reach a hardness of ~197 HB. This is the optimal state for complex CNC turning and milling where tool wear must be minimized.

• Normalizing (870°C / 1600°F): Air cooling. This refines the grain structure and achieves ~302 HB, ideal for eliminating internal stresses before the final precision pass.

• Quenching & Tempering (The Q+T Cycle): Oil quenching from 845°C followed by tempering at 540°C. This allows us to hit a final hardness of 35 HRC. This state provides the maximum balance of toughness and durability required for high-pressure hydraulic fittings.

6. Precision Machining Challenges: The ±0.02mm Mastery

Machining 4140—especially in its hardened state—is a technical battle. The high alloy content makes it “gummy” during cutting, leading to heat buildup and tool deflection.

How We Maintain ±0.02mm Consistency:

• Robotic Gantry Loading: To eliminate human error in high-volume runs, our robotic loading systems ensure that every aisi 4140 steel blank is positioned with perfect repeatability.

• Tool Offset Management: aisi 4140 steel causes rapid tool wear. Our CNC operators monitor tool life cycles strictly, using high-grade TiAlN-coated carbide inserts to maintain sharp edges and precise tolerances.

• Thermal Stability: By utilizing high-pressure cooling systems, we prevent the thermal expansion of the aisi 4140 steel workpiece, which is critical when holding tight tolerances on internal threads and seal faces.

• Stress Relief Machining: For complex custom parts, we implement a “Rough-Rest-Finish” cycle, allowing the material to stabilize between passes, preventing post-machining warping.

7.Why Partner with Us for Your AISI 4140 Alloy Steel Machining Needs?

80+ High-Speed CNC Lathes: Our massive production capacity ensures that whether you need a specialized Pipe Union or a bulk order of Automobile Parts, we deliver with consistent quality and shorter lead times.

OEM/ODM Expertise: We don’t just follow drawings; we optimize them. Our team provides professional DFM (Design for Manufacturing) feedback to reduce costs and improve part durability.

One-Stop Shop: From raw 4140 forging to precision turning, heat treatment (Q+T), and final surface finishing, we handle the entire process in-house at our Taizhou factory.

Tight Tolerances: We guarantee ±0.02mm precision for critical dimensions, ensuring every Joint and Valve fits perfectly in your assembly.

8. Custom Applications: From Drawings to Global Delivery

We don’t just sell “parts”; we solve engineering problems. Our Custom AISI 4140 CNC Parts are widely used in:

• Hydraulic Systems: Custom forged steel threaded fittings​ (tees, elbow pipe fittings, unions), that must handle 6000+ PSI.

• Oil & Gas: High-tensile couplings, caps, and valve bodies for drilling and rig projects.

• Heavy Machinery: Precision bushings, threaded nipples, and drivetrain components.

• Automotive Performance: Custom-machined shafts and connectors requiring high fatigue resistance.

• Fastener:steel plug ,hex bolts and nuts ,Oem turning parts

9-Quality Assurance for High-Pressure Fittings & Valves

Every Pipe Fitting and Valve Component undergoes rigorous thread inspection and pressure-resistance testing. We understand that in hydraulic and automotive applications, a single deviation can lead to system failure. That’s why our AISI 4140 parts come with full traceability, Material Test Certificates (MTC), and dimensional reports to give you 100% confidence.

10. FAQ: Expert Insights into AISI 4140 Alloy Steel Machining

Q1: Is AISI 4140 Alloy Steel CNC Machining Parts easy to weld?

A: It is weldable, but requires preheating (200-300°C) and post-weld stress relief to prevent cracking due to its high hardenability.

Q2: Can you machine AISI 4140 Alloy Steel after it has been hardened to 40+ HRC?

A: Yes. While challenging, our high-torque CNC lathes and hardnened/carbide tooling allow us to perform “Hard Turning” to reach precise final dimensions.

Q3: What surface finishes can you achieve?

A: We routinely achieve Ra 0.8μm (32 micro-inch) or better. For ultra-smooth requirements, we can implement electropolishing or grinding.

11. Quality Assurance: Full Traceability & MTC

Every project at Yuhuan Hongqian Machinery comes with full documentation. We provide:

• Material Test Certificates (MTC) per EN 10204 3.1.

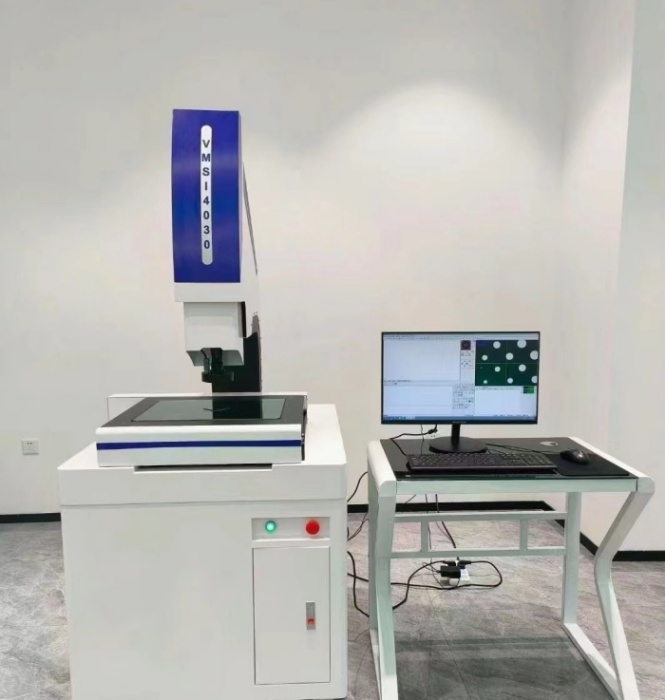

• Dimensional Inspection Reports verifying the ±0.02mm tolerance.

• Hardness Testing Reports confirming the HB/HRC values.

Conclusion: Partner with a AISI 4140 Alloy Steel Machining Specialist

Choosing the right manufacturer for your AISI 4140 Alloy Steel custom CNC parts is a decision that impacts the safety and longevity of your final product. With our fleet of 80+ CNC lathes, automated production lines, and deep metallurgical knowledge, we provide the “certainty” that global buyers demand.

Are you ready to elevate your project’s precision?

Don’t just take our word for it—test our capability. Send us your PDF, STEP, or IGS drawings today for a Free DFM (Design for Manufacturing) Analysis.
