Mastering Hex Socket Plug Production

Maximizing Profit and Precision in CNC Machined Fittings

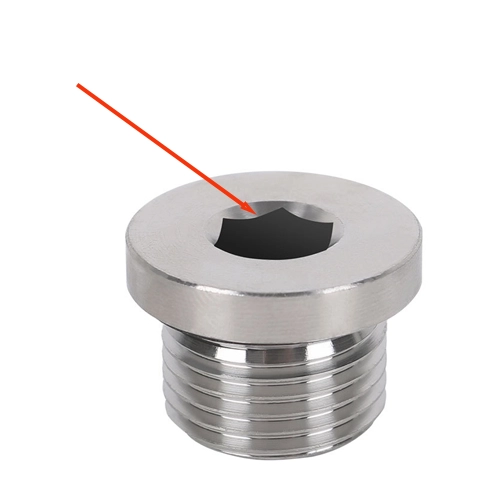

In the demanding world of modern machining, components like the hex socket plug (including hex socket oil plugs, set screws, and pipe plugs) are ubiquitous. These parts are critical for secure fastening and easy serviceability in hydraulic, pneumatic, and general machinery systems. For CNC parts manufacturers, maintaining precision, repeatability, and cost-effectiveness is paramount, especially when deciding the optimal method for obtaining the initial fitting blank.

The volume of the customer order dictates the most efficient and competitive blanking technique. Here is a breakdown of the three primary strategies we employ at Yuhuan Hongqian Machinery Co., Ltd. for manufacturing carbon steel and stainless steel fittings.

1. 🚀 Big Volume Orders: The Power of Cold Heading (Cold Forging)

When dealing with large volume orders for stainless steel and carbon steel tube fittings, Cold Heading (or Cold Forging) is the superior choice.

What is Cold Heading?

Cold Heading is a high-efficiency precision metal forming process that shapes wire or slugs at room temperature without material loss.¹ By applying compressive forces in high-cost, precision molds, the hexagonal shape is directly formed into the blank.

• Key Advantage: It eliminates significant material waste and time associated with initial CNC turning for the hex feature.²

• Result: Provides the most competitive pricing for hydraulic, pneumatic, and hose fittings.

• Material Enhancement: The plastic deformation at room temperature strengthens the material’s internal grain structure, resulting in superior hardness, tensile strength, and fatigue resistance.³

• Limitation: Due to the substantial mold cost and high-force requirements, it is only viable for very high quantities and generally restricted to smaller-sized fittings. Material must possess high tenacity and low hardness to prevent cracking.

2. ⚙️ Middle Volume Orders (Approx. 5,000 Pcs): Leveraging Cold or Hot Forging

For middle volume orders—typically around 5,000 pieces—forging remains the optimal solution, balancing cost and efficiency.

Option A: Cold Forging (Higher Accuracy)

Mid-volume cold forging produces blanks that are slightly larger than cold-headed parts, often with a darker, rougher surface finish. To prepare for final CNC machining, manufacturers must add a surface treatment step:

• Pre-machining Step: Sandblasting is required to improve the surface quality before the part is loaded into the CNC lathe.⁴

Option B: Hot Forging (Lower Tooling Cost)

Hot forging deforms the metallic workpiece at temperatures above its recrystallization point (e.g., $1100^{\circ}\text{C}$ to $1250^{\circ}\text{C}$ for steel).

• Tooling Cost Benefit: Hot forging molds are significantly cheaper—sometimes $1/10$ the cost of a precision cold heading mold.

• Suitability: This makes hot forging highly suitable for middle-volume runs where the initial investment must be amortized over a smaller batch size.

3. 📉 Small Volume Orders: CNC Machining and Specialized Punching

When customers require small quantity orders for hex socket fittings, the cost of specialized molds for forging is prohibitive. The solution relies almost entirely on the CNC machining center, although a specialized process is needed for the inner hex shape.

• Process Flow:

  1. Drill the necessary internal hole depth on a CNC lathe.

  2. Custom a hex broaching or punching tool.

  3. Fix the hex tool in a punch machine.

  4. Punch the final hex shape.

  5. Due to the burrs created by the stamping/punching process, the part must be returned to the CNC lathe for a final cleanup pass to ensure a superior surface finish and precise tolerance.

• Cost Implication: This multi-step method leads to a significantly higher unit cost compared to utilizing a high-efficiency forged blank.

📍 Conclusion: Strategic Sourcing of CNC Blanks in Yuhuan

Choosing the correct blank strategy—from the efficiency of high-volume cold heading to the flexibility of small-batch CNC punching—is crucial for maintaining competitive pricing and high quality in the precision fittings market.

As a professional CNC turning parts factory specializing in steel and stainless steel fittings, Yuhuan Hongqian Machinery Co., Ltd. is strategically located in Yuhuan, Zhejiang, a major hub for precision machining and valve manufacturing in China.⁵

We optimize our production methods based on your specific quantity needs to ensure you receive the most cost-effective and highest-quality components.

Welcome to inquire and place your orders for high-precision CNC parts! Contact us today to discuss your project requirements.
