Bulkhead fitting are essential components that play a crucial role across various industries. Understanding their functions, importance, and applications is vital for anyone involved in industrial or commercial plumbing systems.
Bulkhead fitting serve multiple functions within a plumbing system. Primarily, they allow for the secure connection of pipes while providing a watertight seal. Their design facilitates the transfer of liquids between compartments or containers without the risk of leakage. These fittings can also serve as access points for maintenance and inspection, ensuring that systems operate efficiently and safely.
The importance of bulkhead fitting cannot be overstated. They prevent leaks that can lead to significant issues, including environmental hazards and costly repairs. In addition, these fittings help maintain the integrity of fluid systems, ensuring that the liquid remains contained and reducing the risk of contamination. Their reliability is essential for industries that rely on precise fluid control, such as chemical processing, food and beverage production, and wastewater management.
Bulkhead fitting are also designed to withstand various pressures and temperatures, making them suitable for a wide range of applications. Their durability ensures that they can handle tough conditions without failing, which is critical in demanding environments.
Tank and Drum Drainage: Bulkhead fittings are used to drain tanks and drums efficiently, allowing for the quick removal of liquids during maintenance or cleaning processes.
Fluid Transfer Systems: These fittings are often employed in systems where liquids need to be transferred between different containers or compartments, ensuring secure and leak-free connections.
Aquaculture: In aquaculture systems, bulkhead fittings provide crucial connections for water circulation, filtration, and aeration, maintaining the health of aquatic life.
Chemical Processing: In industries that deal with hazardous materials, bulkhead fittings help create secure barriers against leaks, protecting workers and the environment.
Automotive and Marine Applications: In automotive and marine settings, these fittings are vital for ensuring reliable connections in fuel, coolant, and hydraulic systems.
| Item no | Outer thread size | Inner thread size | LENGTH INCH | HEX INCH |
|---|---|---|---|---|
| 3/4 bulkhead fitting | 3/4-16UNF | 1/4-18NPT | 35.6mm | 31.75mm |
| 3/4 bulkhead fitting | 3/4-16UNF | 1/4-18NPT | 24.13mm | 25.4mm |
| 3/4 bulkhead fitting | 3/4-16UNF | 1/4-18NPT | 38.1mm | 25.4mm |
| 1/2 bulkhead fitting | 1-1/8-12UNF | 1/2-14NPT | 38.1mm | 31.75mm |
| 1-14 bulkhead fitting | 1-14UNF | 3/8-18NPT | 35.6 mm | 31.75mm |
| 1-1/8 bulkhead fitting | 1-1/8-12UNF | 1/2-14NPT+3/8+18NPT | 38.1 mm | 31.75mm |
Bulkhead fittings are indispensable in various industries due to their functionality, importance in leak prevention, and diverse applications. Choosing high-quality fittings from reputable suppliers ensures that your plumbing systems operate efficiently and safely.
If you are looking for top-tier bulkhead fittings or other plumbing components, consider reaching out to a trusted provider.Yuhuan honqian machinery co.,ltd will be one of your best choose , we have more than 10 years produce for bulkhead frame fittings , pipe coupling , tube fittings , compression fittings , hex nut ets with carbon steel , brass material .
| NAME | Outer diameter | inner diameter | length | hex size |
|---|---|---|---|---|
| Carbon steel bulkhead fittings | 1/2-14npt ,1-14UNF | 1/4-18npt | 73mm | 31.75mm |
| Name | outer diameter | Inner diameter | length | hex size |
|---|---|---|---|---|
| 1/2-14 bulkhead fittings | 1/2-14 NPT ,1-14UNF | 3/8-18 NPT | 54.5mm | 31.75 |

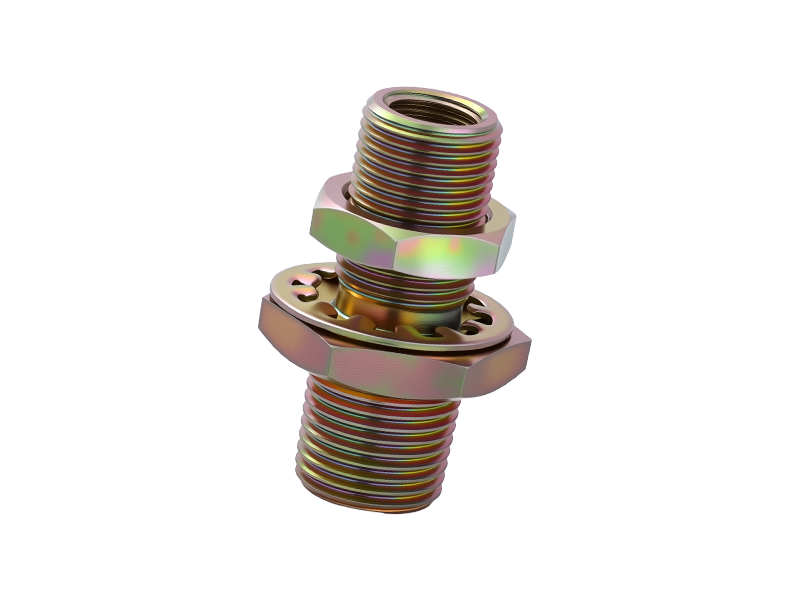

This type bulkhead fitting we produce by cnc lathe machining , forging blank with 1045 middle carbon steel material , with high pressure and strenght used for -Connect air brake fittings ,it is easy to assemble and disassemble over and over again.
For our cnc turning parts manufacture not only focus on the quality of the bulkhead fittings also would like the study function of the bulkhead fitting . Then could imporove the design and supply more good cnc parts for the market and customers . Welcome that more people study and share bulkhead fitting knowledge for us .
