Hose fittings are essential components in almost every fluid-handling system, from garden irrigation to industrial hydraulic machines. They form secure, leak-proof connections between hoses, pipes, and other system components, ensuring smooth operation and safety. Despite their simple appearance, hose fittings vary widely in type, material, and application, which can make choosing the right one confusing. This guide will help you understand the different types of hose fittings, their materials, applications, and best practices for installation and maintenance.
What Is a Hose Fitting?
A hose fitting is a connector used to join hoses to pipes, pumps, tanks, or other hoses. Its primary function is to ensure a tight seal that prevents leaks while allowing fluid to flow efficiently. Hose fittings can be made from brass, stainless steel, carbon steel, or plastic, depending on the application.
In industrial systems, hydraulic fittings are crucial because they must withstand high pressure and sometimes extreme temperatures. For garden or low-pressure systems, hose barb fittings provide a simple and reliable connection method.
Types of Hose Fittings
There are three main types of hose fittings, each suited for different applications and pressure levels.
1. Hose Barb Fittings
Hose barb fittings are one of the most common types used in low- to medium-pressure applications. They feature a barbed end that fits inside the hose and a threaded or smooth end that connects to a pipe or another fitting. The barbs grip the hose, and a hose clamp is usually applied for extra security.
These fittings are widely used in garden hoses, water cooling systems, and fluid transfer applications. They are easy to produce, and CNC turning allows manufacturers to make thousands of fittings daily with consistent quality.
2. Crimped or Permanent Fittings
For high-pressure systems, crimped fittings are preferred. These fittings are permanently attached to the hose using a hydraulic crimping machine or CNC turning process. The crimp forms a tight, durable connection that can withstand high pressure without leaking.
Materials commonly used for crimped fittings include brass, carbon steel, and stainless steel. Brass fittings are easier to produce due to their softer material, allowing drilling and threading to finish in around 20 seconds per side. Stainless steel fittings, while more durable, are harder to machine—especially for small holes under 10mm. Over-speeding the drill can break the tool, slowing production.
During production, attention must be paid to threading, removing burrs, and ensuring a smooth surface. Surface treatments like chrome plating, nickel plating, or acid washing can improve corrosion resistance and appearance.

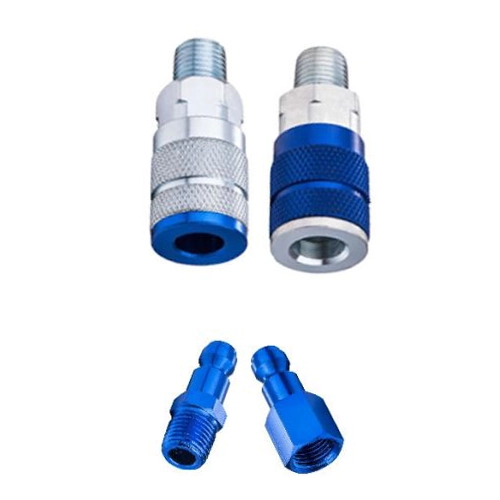

3. Reusable or Field-Attachable Fittings

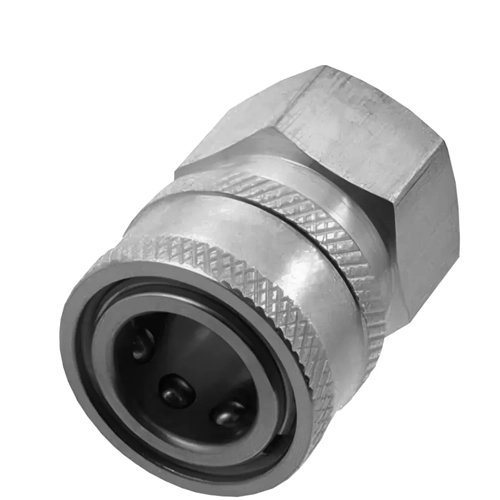

Reusable fittings, also called quick-connect or hydraulic couplers, allow hoses to be connected and disconnected easily without specialized tools. They are convenient for maintenance or temporary setups but are generally not recommended for high-pressure applications due to limited pressure capacity.
How to Use a Hose Fitting
Using hose fittings correctly is essential for system reliability and safety. Follow these steps for installation:
Select the Correct Fitting
Choose a fitting that matches your hose diameter, pressure requirements, and application. Consider the type of threads and connection style.Prepare the Hose
Cut the hose cleanly and remove any debris inside and outside the cut end. A smooth, straight cut ensures proper sealing.Install the Fitting
For hose barb fittings, push the hose over the barb and tighten a hose clamp.
For crimped fittings, insert the fitting and use a crimping machine or CNC turning setup to secure it. Ensure the crimp is not too tight or too loose.
Apply surface protection like plastic caps to prevent scratches or contamination.
Inspect and Test
Conduct a visual inspection for alignment and surface defects. Then, test the system under pressure to check for leaks or weak connections.
What Are the Three Main Types of Fittings?
In summary, the three main types of hose fittings are:
Hose Barb Fittings: Simple, reliable, and cost-effective for low- to medium-pressure systems.
Crimped or Permanent Fittings: Strong, durable, and suitable for high-pressure hydraulic or industrial applications.
Reusable/Field-Attachable Fittings: Flexible and convenient for temporary setups or easy maintenance.
Each type has advantages and limitations, and the choice depends on the application, pressure requirements, and budget.
Material Considerations for Hose Fittings
The material of a hose fitting greatly affects its performance, durability, and cost.
Brass: Easy to machine, corrosion-resistant, and suitable for medium-pressure applications. CNC turning allows rapid production. Despite higher material cost, small brass fittings can be more cost-effective than stainless steel due to easier processing.
Stainless Steel: Strong, durable, and corrosion-resistant, ideal for high-pressure or chemical applications. Harder to machine, especially for small holes, requiring slower drill speeds to prevent tool breakage.
Carbon Steel: Commonly 1020 or 1045 grade, often zinc-plated to pass 72-hour salt spray tests. Excellent for general hydraulic applications.
Surface Treatment: Chrome plating, nickel plating, or acid washing improves corrosion resistance and aesthetics.
Applications and Best Practices
Low-Pressure Applications: Garden hoses, water circulation, and small fluid systems → use hose barb fittings with clamps.
High-Pressure Applications: Hydraulic machinery, industrial pumps → use crimped fittings or threaded fittings made from brass, stainless steel, or carbon steel. CNC turning ensures high precision.
Storage and Handling: Keep fittings dry, away from direct sunlight, and protect threads with plastic caps to prevent scratches or dents.
Maintenance: Regularly inspect threads, hoses, and O-rings for wear or damage. Replace worn components immediately to prevent leaks.
Conclusion
Choosing the right hose fitting is crucial for system efficiency, safety, and longevity. Understanding the different types, materials, and installation methods helps ensure reliable performance. Hose barb fittings are ideal for simple, low-pressure setups, while crimped fittings handle high-pressure hydraulic systems. Selecting the appropriate material—brass, stainless steel, or carbon steel—based on application and ease of production ensures both quality and cost efficiency.
By following proper installation and maintenance practices, including CNC turning for precise fittings and surface treatments for corrosion protection, you can achieve a durable, leak-free connection for any fluid system.
