In the complex landscape of global industrial manufacturing, the integrity of a fluid system often rests on the precision of a single thread. For engineers and B2B procurement professionals, the NPT (National Pipe Taper) fitting is more than just a component—it is a critical point of potential success or failure.
At Yuhuan Hongqian Machinery Co., Ltd. , we have dedicated over 10 years to the relentless pursuit of machining perfection. Operating from Yuhuan, Zhejiang—China’s premier hub for pressure pipe fittings—we combine a decade of industry legacy with a modern fleet of over 60 high-precision CNC lathes. Our mission is simple: to provide the international market with NPT fittings that exceed standard expectations for fit, finish, and durability.
1. What Exactly is an NPT Fittings?
NPT (National Pipe Taper), defined by ANSI/ASME B1.20.1, is the standard for tapered threads used on threaded pipes and pipe fittings. Unlike straight threads (NPS), which are used for mechanical joining, NPT threads are designed to create a leak-proof seal.
The 1:16 Taper Engineering
The “secret sauce” of an NPT pipe fitting is its 1:16 taper rate. For every 16 units of length, the diameter decreases by 1 unit. This creates a specific 1° 47′ angle. As a male NPT fitting is screwed into a female port, the threads compress against each other, creating a metal-to-metal interference fit.
At Hongqian Machinery, we understand that even a 0.01mm deviation in this taper can lead to “spiral leakage”—a tiny path left open between the crests and roots. This is why our CNC programming accounts for every micro-degree of the taper angle.
2. Multi-Standard Mastery: BSP, NPT, NPTF, and Beyond
One of the primary challenges for global buyers is navigating the “Thread Jungle.” A common mistake is assuming that all pipe threads are interchangeable. They are not.
As an expert manufacturer with 8+ years of export experience, Yuhuan Hongqian Machinery is proficient in a vast array of international standards:
-
NPT & NPTF (National Pipe Taper Fuel): NPTF is a “dry seal” version that requires no sealant, used extensively in fuel systems.
-
BSP (British Standard Pipe): Including BSPP (Parallel) and BSPT (Tapered). Note: BSP has a 55° thread angle, while NPT has a 60° angle. They are not compatible.
-
UNF/UNEF (Unified Fine/Extra Fine): Common in aerospace and high-vibration automotive applications.
-
Metric (M) Series: Essential for European machinery integration.
Our facility is uniquely equipped to switch between these standards, ensuring that a European client ordering BSP-to-NPT adapters receives parts that interface perfectly with both systems.
| Thread Type | Full Name | Thread Angle | Thread Shape |
|---|---|---|---|
| NPT | National Pipe Tapered | 60° | Tapered |
| BSPT | British Standard Pipe Tapered | 55° | Tapered |
| NPTF | National Pipe Tapered Fuel / Dryseal | 60° | Tapered |
| NPSM | National Pipe Straight Mechanical | 60° | Straight |
| M | Metric Thread | 60° | Straight |
| G | BSP Parallel (Gas Thread) | 55° | Straight |
| UN | Unified National Thread | 60° | Straight |
| UNF | Unified National Fine Thread | 60° | Straight |

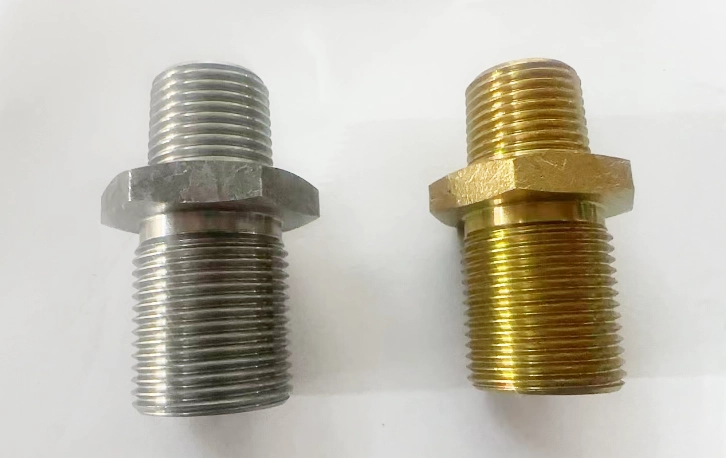

3. The “Hongqian Touch”: Why Finishing Matters
In mass production, many factories cut corners to reduce cycle time. At Hongqian, we believe that the quality you can feel is the quality you can trust.
The Finishing Tool Advantage
We implement a Secondary Precision Finishing Pass (locally known in our factory as using a . While standard machining might leave micro-burrs or a rough “torn” thread surface, our finishing pass:
-
Smooths the Flanks: Ensures the contact area between male and female threads is maximized.
-
Removes Burrs: Eliminates the risk of sharp metal fragments entering your hydraulic fluid or air stream.
-
Superior Hand-Feel: Our 1/2 NPT fittings and 1/4 NPT fittings can be threaded by hand much further and smoother than competitors’ products, reducing the risk of cross-threading during site installation.
4. Size Comparison: 1/4″ NPT vs. 1/2″ NPT Fittings
For many new engineers, NPT sizing can be counter-intuitive. A 1/4 NPT fitting does not actually measure 0.25 inches in diameter.
Understanding the Dimensions
| Nominal Size | TPI (Threads Per Inch) | Actual Outside Diameter (OD) | Typical Use Case |
| 1/4″ NPT | 18 | 0.540″ (13.7 mm) | Gauges, sensor ports, pneumatic tools. |
| 1/2″ NPT | 14 | 0.840″ (21.3 mm) | Main fluid lines, residential plumbing, heavy hydraulics. |
5. How We Detect and Validate NPT fittings Quality
You cannot manage what you cannot measure. At Yuhuan Hongqian Machinery, our quality control lab is the heart of our factory.
The Triple-Check Inspection Method:
-
L1 Plug & Ring Gauge Testing: We use hardened, calibrated gauges to check the “Hand-Tight Engagement” (L1). If a fitting doesn’t sit exactly at the notch on the gauge, it is rejected.
-
Optical Profile Projector: For custom or high-precision npt pipe fittings, we use optical scanners to project the thread profile at 50x magnification. This allows us to verify the 60° thread angle and the truncation of the roots and crests.
-
Material Analysis (Spectrometer): We verify every batch of raw material (Stainless Steel 304/316, Carbon Steel, or Q355) to ensure it meets the chemical requirements for corrosion resistance and tensile strength.
6. Technical Reference: NPT fittings Thread Specification Chart
To ensure your project planning is accurate, our engineering team has compiled this standard reference chart. As a professional CNC factory, Yuhuan Hongqian Machinery strictly adheres to these dimensions using calibrated ring and plug gauges.
NPT Pipe Thread Tooling & Dimensions Table
| Nominal Size (in) | Threads Per Inch (TPI) | Pitch (in) | Outside Diameter (OD) | Tap Drill Size (in) | Hand-Tight Engagement (L1) |
| 1/16″ NPT | 27 | 0.0370 | 0.3125″ (7.9 mm) | 1/4″ | 0.160″ |
| 1/8″ NPT | 27 | 0.0370 | 0.4050″ (10.3 mm) | 11/32″ | 0.161″ |
| 1/4″ NPT | 18 | 0.0556 | 0.5400″ (13.7 mm) | 7/16″ | 0.227″ |
| 3/8″ NPT | 18 | 0.0556 | 0.6750″ (17.1 mm) | 37/64″ | 0.240″ |
| 1/2″ NPT | 14 | 0.0714 | 0.8400″ (21.3 mm) | 23/32″ | 0.320″ |
| 3/4″ NPT | 14 | 0.0714 | 1.0500″ (26.7 mm) | 59/64″ | 0.339″ |
| 1″ NPT | 11.5 | 0.0870 | 1.3150″ (33.4 mm) | 1-5/32″ | 0.400″ |
| 1-1/2″ NPT | 11.5 | 0.0870 | 1.9000″ (48.3 mm) | 1-47/64″ | 0.420″ |
| 2″ NPT | 11.5 | 0.0870 | 2.3750″ (60.3 mm) | 2-7/32″ | 0.436″ |
Pro Tip from Hongqian Engineering: When measuring npt pipe fittings in the field, always remember that the “Nominal Size” refers to the internal diameter of the pipe, not the actual measured thread diameter. For instance, a 1/2 npt fitting will measure roughly 0.84 inches on a caliper—not 0.50 inches. This is the most common reason for ordering errors in B2B procurement.
7. Professional Installation: The Art of the PTFE Seal
Even a perfectly machined NPT fitting can leak if installed incorrectly. Since NPT relies on thread deformation, a lubricant or sealant is almost always required.
Expert Installation Tips:
-
The Clockwise Rule: Wrap your PTFE tape in the direction of the thread (clockwise). This prevents the tape from unravelling as you tighten the fitting.
-
Tape Thickness: For a 1/2 NPT fitting, we recommend 3-4 wraps. For a 1/4 NPT fitting, 2-3 wraps are usually sufficient.
-
The “First Thread” Gap: Always leave the first 1-2 threads bare. This allows the thread to start cleanly without tape fragments getting sheared off into the system.
-
Torque Control: Tighten to “Finger Tight,” then use a wrench for another 2 to 3 full turns. Do not over-tighten stainless steel, as it can “gall” (cold weld) and become impossible to remove.
8.Why Partner with Yuhuan Hongqian Machinery for Custom npt fittings?
In the competitive landscape of global industrial procurement, Yuhuan Hongqian Machinery Co., Ltd. stands out as a premier CNC machining manufacturer specializing in precision carbon steel and alloy pipe fittings. Strategically located in Taizhou, Zhejiang—the epicenter of China’s precision hardware supply chain—we bridge the gap between complex engineering requirements and large-scale production.
1. Global Material Equivalency Mastery
Navigating international material standards is a common bottleneck for B2B buyers. At Hongqian, we eliminate this friction. Whether your blueprints specify AISI 4140 (USA), 42CrMo4 (Europe), or SCM440 (Japan), our engineering team ensures the chemical composition and mechanical properties align perfectly with your local requirements.
International Steel Grade Comparison Chart
| Material Category | China (GB) | Europe (EN/DIN) | Japan (JIS) | USA (AISI/ASTM) |
| Low Carbon Steel | Q235 / 20# | S235JR / C22E | SS400 / S20C | ASTM A570 / AISI 1020 |
| Medium Carbon Steel | 35# / 45# | C35E / C45E | S35C / S45C | AISI 1035 / 1045 |
| Alloy Steel (CrMo) | 42CrMo | 42CrMo4 | SCM440 | AISI 4140 |
| Free Machining Steel | Y12 / Y15 | 10S20 / 11SMn28 | SUM12 / SUM22 | AISI 1211 / 1213 |
| Lead-added Free Steel | Y12Pb / Y15Pb | 10SPb20 / 11SMnPb28 | SUM22L / SUM24L | AISI 12L13 / 12L14 |
2. High-Precision CNC Infrastructure
-
Production Scale: Our facility houses over 60+ high-precision CNC lathes, allowing for simultaneous high-volume production and rapid prototyping.
-
Thread Versatility: We are a “One-Stop Shop” for globally recognized thread standards, including NPT, NPTF, BSPT, BSPP, UNF, and Metric series.
-
Superior Surface Finish: We specialize in 12L14 and 1215 series free-machining steel, utilizing a secondary precision finishing pass to achieve the micro-smooth surface required for leak-proof NPT seals.
3. Verified Quality & Material Integrity
We adhere to a 100% inspection protocol to ensure zero-defect delivery:
-
Spectrometer Analysis: Every batch of raw bar stock is verified upon arrival. We guarantee that Carbon, Chromium, and Molybdenum levels meet the Mill Test Certificate (MTC) requirements.
-
Dimensional Validation: Utilizing Optical Profile Projectors and calibrated L1 Plug & Ring Gauges, we verify thread geometry at 50x magnification to prevent “Spiral Leakage.”
-
Hydrogen Embrittlement Control: For high-strength carbon steel (above 31 HRC), we implement a strict 200°C baking process post-plating to ensure structural integrity.
4. Optimized Lead Times & Logistics
With 10 years of machining expertise and 8 years of B2B export success, we understand the importance of supply chain agility. We maintain a diverse inventory of low-carbon and high-tensile alloy steels, enabling us to reduce lead times even for custom-specified orders.
Pro Tip for Engineers: Balancing cost and corrosion resistance is key. Our team provides technical consultations to help you select the optimal material grade based on your specific Salt Spray Test (ASTM B117) requirements and mechanical load.
9. Frequently Asked Questions (FAQ)
Q1: Can I use NPT fittings for high-pressure hydraulic systems?
Yes, NPT is commonly used up to 5,000 PSI, but for vibration-heavy environments, we often recommend our customers look into NPTF (Dry Seal) or JIC connections for added security.
Q2: What is the difference between NPT and NPTF ?
NPT requires a sealant (tape or paste). NPTF is designed to crush the tooth of the thread into the root, creating a mechanical seal without tape. We can machine both to exacting standards.
Q3: Why is my NPT fitting leaking even with tape?
This is often due to “Flat” threads or incorrect taper angles from low-quality machining. Our use of a finishing tool minimizes this risk by ensuring perfect thread geometry.
